Adapters

---

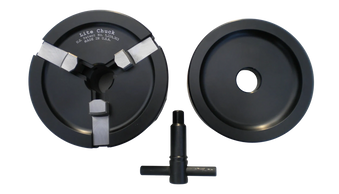

KIT INCLUDES:

• Lite Chuck Adapter 3-Jaw

5" dia PN 10040

Small Jaw Set PN 10042

• Fits drums and rotors with center holes from 2 1/8" to 5 3/4" with optional Large Jaws set PN 10041

• Medium Backing Plate Adapter 5" dia PN 10043

• Wrench (3/8" drive) PN 10044

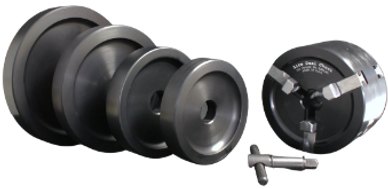

KIT INCLUDES:

• Lite Dual Chuck Adapter 3-Jaw

 (5" dia double sided chuck)

PN 20040

Small Jaw Set PN 10042

Large Jaw Set PN 10041

• Small Backing Plate Adapter         4.75" dia, for use with small hubless rotors and drums PN 10047

• Medium Backing Plate Adapter 5" dia PN 10043

• Toyota Backing Plate Adapter      6.25" dia, for use with Toyota Trucks "Tundra"  PN 10054

• Large Backing Plate Adapter         7.25" dia, for use with large hubless rotors and drums PN 10046

• Wrench (3/8" drive) PN 10044

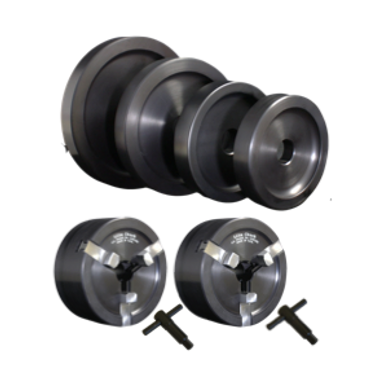

KIT INCLUDES:

• (2) Lite Chuck Adapter 3-Jaw

(5" dia) PN 10040

Small Jaw Set PN 10042

Large Jaw Set PN 10041

• Small Backing Plate Adapter         4.75" dia, for use with small hubless rotors and drums PN 10047

• Medium Backing Plate Adapter 5" dia PN 10043

• Toyota Backing Plate Adapter      6.25" dia, for use with Toyota Trucks "Tundra"  PN 10054

• Large Backing Plate Adapter         7.25" dia, for use with large hubless rotors & drums PN 10046

• (2) Wrench (3/8" drive) PN 10044

KIT INCLUDES:

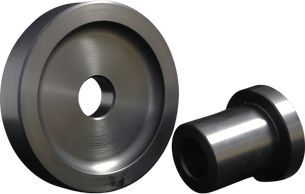

Ford F-150 Bushing Adapter with Small Backing Plate Adapter 4.75" dia PN 10071

• Simply slide backing plate onto 1" arbor and insert front bushing into spline or bearing on rotor. Mount rotor onto arbor until flange meets backing plate. Install spacers and nut.

ADAPTER ADVANTAGES:

• Eliminates run-out
• Eliminates chatter and vibration (Revolutionary design absorbs vibration, which causes tool chatter)
• Eliminates expensive on the car lathes
• Eliminates costly rotor replacement, which saves your customers money

 KIT INCLUDES:

Dodge/Chevy 4x4 Backing Plate & Bushing Adapter PN 10080

• This specialized adapter was developed for Dodge & Chevy spline front rotors on late model 4x4 trucks. The heavy duty backing plate and front bushing take all the guesswork and frustration out of mounting the rotor onto your 1" arbor brake lathe.

ADAPTER ADVANTAGES:

• Eliminates run-out
• Eliminates chatter and vibration (Revolutionary design absorbs vibration, which causes tool chatter)
• Eliminates expensive on the car lathes
• Eliminates costly rotor replacement, which saves your customers money

KIT INCLUDES:

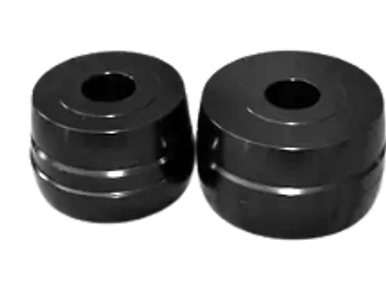

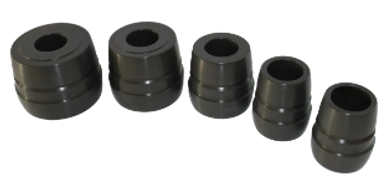

5 Piece Double Taper Set PN LDT9232

• Lite Double Taper Adapter 1.33"-1.67" PN LDT9921

• Lite Double Taper Adapter 1.37"-1.71" PN LDT9922

• Lite Double Taper Adapter 1.71"-2.07" PN LDT9192

• Lite Double Taper Adapter 2.08"-2.44" PN LDT9193

• Lite Double Taper Adapter 2.44"-2.89" PN LDT9194.

KIT INCLUDES:

2 Piece Double Taper Set PN LDT9233

• Lite Double Taper Adapter 2.84"-3.19" PN LDT9195

• Lite Double Taper Adapter 3.19"-3.56" PN LDT9196


KIT INCLUDES:

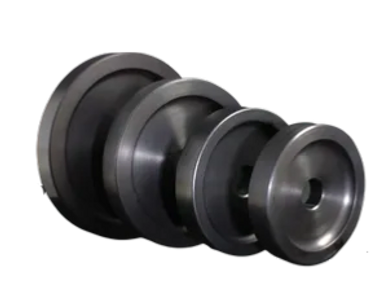

• Small Backing Plate Adapter    4.75" dia, for use with small hubless rotors and drums PN 10047

• Medium Backing Plate Adapter 5" dia PN 10043

• Toyota Backing Plate Adapter 6.25" dia, for use with Toyota Trucks "Tundra" PN 10054

• Large Backing Plate Adapter 7.25" dia, for use with large hubless rotors and drums PN 10046

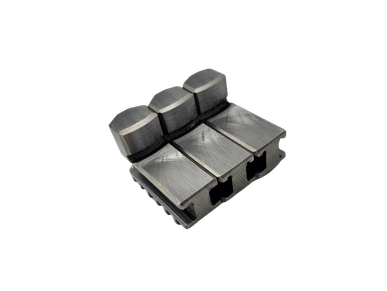

SET INCLUDES:

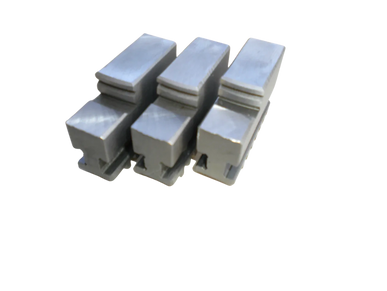

• 3-Large Jaws PN 10041 (truck Jaws) for use with 5" Lite Chuck Adapter PN 10040 & Lite Dual Chuck Adapter PN 20040 (Chuck Adapters Sold Separately)
• For mounting drums and rotors with centering holes from 3.75" to 5.75" Dia (up to 1 Ton Trucks)

SET INCLUDES:

• 3-Small Jaws PN 10042 (Passenger Car) for use with 5" Dia Lite Chuck Adapter PN 10040 & Lite Dual Chuck Adapter PN 20040 (Chuck Adapters Sold Separately)
• For mounting drums and rotors with centering holes from 3.75" to 5.75" Dia (up to 1 Ton Trucks)

INCLUDED:

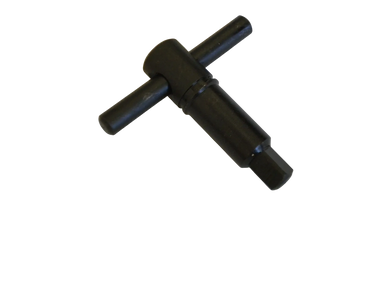

• Wrench (3/8" drive) PN 10044 for use with the Lite Chuck & Lite Dual Chuck Adapters (Chuck Adapters Sold Separately)
